TH-112 | Heavy Duty Diesel Engine Test Stand
- Test and repair new, used, and rebuilt engines without any problems
- Interchangeable frame mounts to house most domestic and foreign engines
- Collapsible and can be stored away in just a couple of minutes
- The perfect engine test stand for professionals, by professionals
- Comes preassembled with everything you want and need in an engine test stand, including a completely wired dashboard
- Frame Assembly & Components are powder-coated & plated
- 3 Gallon Fuel Tank & Mounting
L x W x H: 2500 x 1800 x 1800 mm
Description
Technical Specification
Media

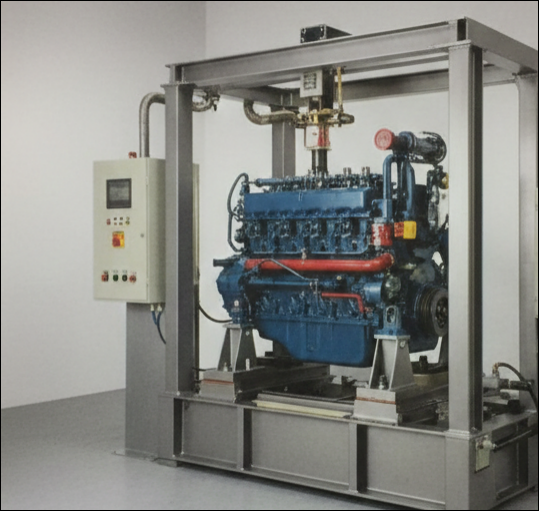

The EduTech TH-112 is a professional, workshop-grade dynamometer test system engineered for the comprehensive verification of refurbished, repaired, and overhauled diesel engines. It serves as the final quality control checkpoint, enabling workshops to validate assembly quality, detect fluid leaks, monitor vibrations, and confirm basic performance before an engine is returned to service.
Designed to accommodate a wide range of heavy-duty diesel engines—including inline 4, inline 6, and V8 configurations like the Mitsubishi Fuso 8DC9-2A—the TH-112 ensures reliability, reduces the risk of premature failures, and provides documented proof of an engine's operational integrity.
Features
- Robust Construction:Heavy-duty welded steel frame with powder-coated finish for lasting durability in demanding workshop environments.
- Flexible Engine Mounting:Adjustable rails with multi-point SUS304 grade fixings to securely accommodate various engine models and sizes.
- Vibration Isolation:Integrated elastomeric anti-vibration mounts isolate the engine from the frame, ensuring accurate readings and reducing workshop noise.
- High-Capacity Support Systems:
- Integrated fuel system with a 100L tank and dual filtration.
- Independent closed-loop cooling system with a ≥250 kW remote radiator and thermostatic fan control.
- Comprehensive Digital Instrumentation:Real-time monitoring of RPM, oil pressure, coolant temperature, and exhaust gas temperature with high-resolution displays.
- Integrated Exhaust Management:Industrial exhaust system with silencer and integrated temperature monitoring probe.
- Advanced Safety Interlocks:Emergency stop, over-temperature shutdown, low-pressure shutdown, and phase sequence protection for safe operation.
- Mobility & Handling:Designed with integrated fork pockets and lifting eyes for easy positioning within your facility.
Specification
| Parameter | Specification |
| Overall Dimensions (L x W x H) | 2500 x 1500 x 1800 mm |
| Test Stand Weight | 800 – 1200 kg (configurable) |
| Max. Engine Weight Capacity | 2000 kg |
| Engine Compatibility | 4-Stroke Diesel; Inline 4, Inline 6, V8 |
| Max. Power Handling | 300 kW (~400 hp) |
| Max. Torque Capacity | >1,100 Nm |
| Fuel System Capacity | 100 Litre tank with dual filtration |
| Cooling System Capacity | ≥250 kW (radiator/tower) |
| Power Supply | 400V AC, 3-Phase, 50 Hz |
| Battery System | 24V Heavy-Duty (two 12V / 120Ah batteries) |
MEASUREMENT & CONTROL ACCURACY
| Parameter | Range & Accuracy |
| Engine Speed (RPM) | Magnetic sensor, ±10 rpm resolution |
| Oil Pressure | 0 - 10 bar (analog/digital display) |
| Coolant Temperature | 0 - 120 °C, ±1 °C accuracy |
| Exhaust Temperature | 0 - 800 °C thermocouple |
| Fuel Flow (Optional) | 0 - 100 L/h flow meter |
- Main Frame:Heavy-duty welded structural steel, powder-coated.
- Engine Mounting:Adjustable rails with multi-point fixings.
- Anti-Vibration:Elastomeric isolators under each foot.
- Cooling System:High-capacity remote radiator with thermostatic fan control, closed-loop, quick-connect couplings.
- Control & Instrumentation:
- Manual control panel with large digital displays.
- Optional touch-screen PID controller with data logging (USB/RS485).
- Emergency stop mushroom button (main power cutoff).
- Safety Protection:
- Low oil pressure / high coolant temp automatic engine shutdown.
- Emergency stop cuts fuel pump and ignition.
- Short circuit, overload, and phase sequence protection.
- Manual reset on all safety limits.
- 100L Fuel Tank with hoses and clamps
- Industrial Cooling Unit (radiator + fan)
- Digital Control Panel
- Universal Engine Mounting Fixtures
- Exhaust System with Silencer and Temp Probe
- 24V Battery System (two 12V 120Ah) with cables
- Operation and Maintenance Manuals
- Tool Kit and Spare Fuses
APPLICATION AREAS
- Engine Rebuild & Remanufacturing Workshops
- Fleet Maintenance Facilities(Truck, Bus, and Heavy Equipment)
- Technical Training Institutes(Automotive / Heavy Equipment)
- Government & Military Vehicle Workshops
- Quality Control Centers
