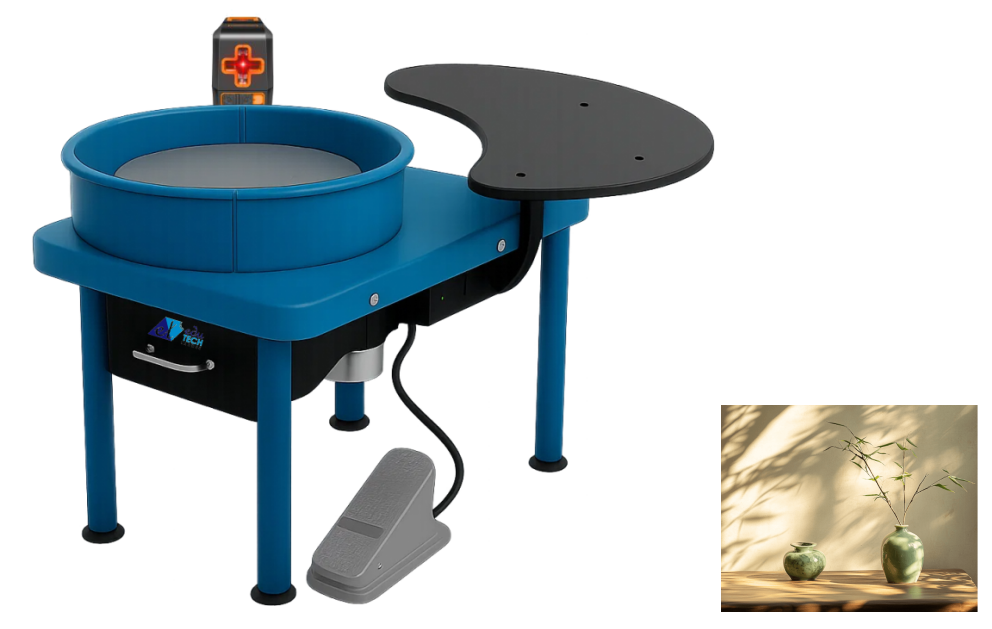

ET-CP-101 Pottery Wheel
Features Heavy-Duty Load Capacity: Capable of handling 150lbs (68kg) of clay continuously without loss of speed or torque. Advanced Drive System: Equipped with a permanent magnet DC or AC servo motor (1hp)providing a speed range of 0–240 rpm with smooth torque delivery. Precision Speed Control: Durable cast aluminum foot pedalwith electronic speed control and 3-foot cord for hands-free operation. Reversible Direction Control: Forward and reverse switch allows left or right-handed operation.Reversible electronic speed control. Automatic Belt Tensioning System: Ensures smooth power transmission and maintenance-free operation. Aluminum Wheel Head: 14-inch (355 mm) precision-machined wheel head cast Aluminium Al6061 T6 with concentric circle markingsand dual bat pins for accurate centering. Integrated Splash Pan & Plastic Bat: Includes 14-inch removable splash panand 14-inch plastic bat for clean operation. Low-Noise, Vibration-Free Design: Balanced drive assembly with noise level below 60 dB(A). Safety & Protection: Equipped with overload and overcurrent protection, emergency stop, and IP54-rated electrical enclosure. Built to Last: Powder-coated structure, corrosion-resistant aluminum parts, and heavy-duty bearings. Warranty & Support: 1-year full warranty and 10 year support from EduTech Lahore.
Description
Technical Specification
Media
Description The ET-CP-101 Pottery Wheel is a high-performance, industrial-grade unit designed for professional ceramic studios, art departments, and technical institutes. Engineered and manufactured in Pakistan using international design standards, this wheel offers precision control, high torque, and ergonomic operation for continuous pottery forming of up to 150 lbs (68 kg) of clay. Its robust structure, smooth speed control, and reversible operation make it ideal for both beginners and professionals. The unit complies with relevant ISO, ASTM, and IEC safety and performance standards, ensuring durability, reliability, and user safety. Compliance & Standards The EduTech Pottery Wheel is designed and tested in accordance with the following standards and guidelines:
- ISO 12100:2010— Safety of Machinery: Risk Assessment and Risk Reduction
- ISO 13849-1:2015— Safety-Related Parts of Control Systems
- IEC 60204-1:2016— Electrical Equipment of Machines
- ASTM F1160— Standard Test Method for Shear and Bending Fatigue Testing of Materials Used in Pottery Wheels (relevant adaptation)
- CE Machinery Directive 2006/42/EC Compliance
- ISO 9001:2015— Quality Management System (Design & Manufacturing)
- Pottery and Ceramic Art Studios
- Technical and Vocational Institutes
- University Art & Design Departments
- Training Workshops and Skill Development Centers
- Plastic pats 14in (qty: 02pc)
- Laser based 2 axis Bright Beam
- For marking 2 axis of to make identical product
- Wheel head:Cast-aluminum anodized Al-6061 T6 14″, CNC finish, concentric marking rings, two stainless steel bat-pins, runout < 2 mm. Balanced to ISO 1940 G6.3.
- Bearings:Heavy-duty deep groove / angular contact bearings (SKF/NTN class) selected for dynamic radial load ≥ 9 kN (L10 life > design target).
- Shaft & coupling:Ground EN-8 steel, interference fit to wheel.
- Drive options: PMDC/AC servo motor + planetary gearbox/pulley belt+ servo drive for superior torque/load.
- Pedal: Cast-aluminum pedal housing, linear hall sensor or precision potentiometer, cable shielding, 3 foot Pedal outputs 0–10 V (or configurable) for smooth speed control.
- Safety: E-Stop latching, dedicated parking brake (spring-applied electrically released), adjustable soft start/stop, thermal motor protection, earth leakage detection.
Specification
| Parameter | Specification |
| Maximum Clay Capacity | 150 lbs (68 kg) |
| Wheel Head Diameter | 14" (355 mm), aluminum 6061 T6, anodized |
| Motor Type | Permanent Magnet DC Motor / AC Servo Motor |
| Motor Power | 1 HP |
| Speed Range | 0 – 240 RPM (variable) |
| Speed Control | Foot pedal rpm control (PM / Servo drive) n Digital Display of RPM |
| Power Supply | 220 V, 50 Hz, single phase |
| On/off | On/off easy toggle switch |
| Reversibility | Forward / Reverse easy toggle switch |
| Frame Material | Powder-coated for greater durability and improved scratch and corrosion resistance |
| Noise Level | ≤ 60 dB(A) |
| Dimensions (L×W×H) | 610 × 470 × 460 mm Approx. |
| Weight (Net) | 40 kg Approx. |
| Safety Compliance | IEC 60204-1, ISO 12100, ASTM F1160 |
| Accessories Included | Splash Pan, Plastic Bat, Foot Pedal, Power Cable, Tool box/drawer, Carriage for product placing. |
